Multi-Tenancy with EJB 3.1 and JPA 2.0

Multi-Tenancy with EJB 3.1 and JPA 2.0 20 Nov 2012

Multi-tenancy is a recurrent non functional requirement. Indeed, many important IT-systems are meant to be shared among multiple tenants. The data are often distributed over several databases or schemas. This, for different reasons:

Security: The data belong to different customers and some level of isolation is required;
Performances: Distributing the data over multiple systems may help to master performance issues;
Legacy: Sometimes, old and new systems must cohabit for a (long) time;
Maintenability: A database or a schema can be updated without putting the rest of the application at risk.

Although data are distributed, the application code should remain tenant agnostic. Furthermore, choosing between the different tenants is often made at runtime based on credentials (e.g. user Joe has access to customer AAAA while user Jane sees data of customer BBB). Java EE 7 will address this problem and much more, but in the mean time here is the way that I use to address this problematic using EJB 3.1 and JPA 2.0

Overall architecture

First, let me start with the overall architecture as described below.

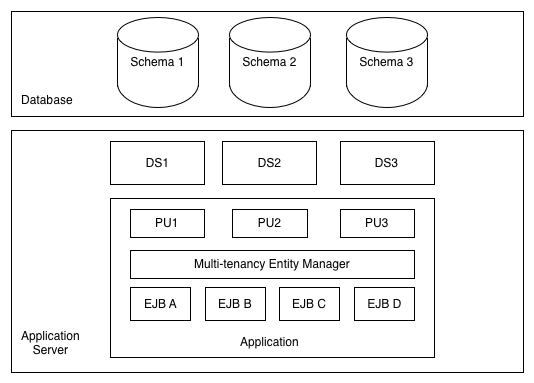

Multi-tenancy architecture with serveral datasources

In the above figure, the database is organized in schemas, with one application server datasource (DS) per schema and one persistence unit (PU) per datasource. It is also possible to use only one datasoure and to discriminate between schemas by setting the <property name="openjpa.jdbc.Schema" value="TenantX" /> property for each persistence unit (PU). This sets the default schema for the PU. Here is a persistence.xml file that provides one persistence unit per tenant.

The following code has been tested for Open-JPA but there is nothing specific to this implementation outside of the <provider>tag in the persistence.xmlfile.

<?xml version="1.0" encoding="UTF-8"?>
<persistence version="2.0"
   xmlns="http://java.sun.com/xml/ns/persistence" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation="http://java.sun.com/xml/ns/persistence http://java.sun.com/xml/ns/persistence/persistence_2_0.xsd">

   <persistence-unit name="Tenant1" transaction-type="JTA">
      <provider>
         org.apache.openjpa.persistence.PersistenceProviderImpl
      </provider>
      <jta-data-source>jdbc/Tenant1_DS</jta-data-source>
      <exclude-unlisted-classes>false</exclude-unlisted-classes>
   </persistence-unit>


   <persistence-unit name="Tenant2" transaction-type="JTA">
      <provider>
         org.apache.openjpa.persistence.PersistenceProviderImpl
      </provider>
      <jta-data-source>jdbc/Tenant2_DS</jta-data-source>
      <exclude-unlisted-classes>false</exclude-unlisted-classes>
   </persistence-unit>

</persistence>

The basic idea is that, instead of using @PersistenceContext, we inject our “own” multi tenant entity manager wraper. Then, at runtime, the multi-tenant entity manager loads the persistence context that corresponds to the current user context from JNDI. Please note that this only works for JTA-based persistence-units. Otherwise, the persistence context is not container-basd and therefore not exposed to JNDI. Moreover, without JTA, we loose container based transaction demarcation.

Let us first start with the client code. In other words, how to use the Multi-Tenant Entity manager.

Client Code

Here is the client code. In order to preserve thread-safety and transactionality, Data access objects are EJBs (@Stateless, @Stateful, @Singleton). The presented solution uses an entity manager that is wrapped and then injected using @Inject or @EJB. Thread-safety, transactionnality and performances are guaranted by the EJB 3.1 and JPA 2.0 specification as explained in the section Thread-safety and Transactionality. As shown below, the MultiTenancyWrapper delegates to a real entity manager and implements the EntityManager interface. Therefore, its use is very similar to a normal EntityManager injected via @PersistenceContext.

@Stateless
public class MyEJB implements MyEJBLocal {

   @Inject
   private MultiTenancyWrapper emWrapper;

   @TransactionAttribute(TransactionAttributeType.REQUIRED)
   public void doSomething() {
      emWrapper.findAll(...);
   }
}

The Multi-Tenant EntityManager EJB

The MultiTenanEntityManagertWrapper simply wraps the entity manager that corresponds to the current user context. The trick is to configure it as an EJB in order to get the xml configuration feature via ejb-jar.xml. Another alternative would be to use the @PersistenceContexts and @PersistenceContext annotations. The main drawback being that, for each new tenant, not only the persistence.xml and ejb-jar.xml must be changed but also the Java code.

The JNDI context that is linked to the current request is injected in the MultiTenantEntityManager using the @Resourceannotation. As there is no creation of a new InitialContext the overhead is not significant. Actually, the @PersistentContext annotation does the exact same thing except that it is not specific to the user context. The MultiTenanEntityManagertWrapper implements the delegate pattern. This allows to use it (almost) transparently in client code. The main difference being the use of @Inject or @EJB over @PersistenceContext in the client code.

Using the session context that is specific to the caller bean (and thus the caller request/session) enables transparent support for thread-safety, security and transactionality.

package ejb;

import javax.persistence.EntityManager;

public interface MultiTenanEntityManagertWrapper extends EntityManager {

}

The method getMultiTenantEntityManager of the MultiTenanEntityManagertWrapperImpl extracts the EntityManager that corresponds to the current request from JNDI (we will see later how it has been put there). To that end, the method getMultiTenantEntityManagerfirst extracts the prinipal from the current EJB context (SessionContext). After what, the tenant that corresponds to the current user is used to obtain the JNDI name of the corresponding entity manager. MultiTenanEntityManagertWrapperImpl simple delegates every call to the this Request specific EntityManager.

@Stateless
public class MultiTenanEntityManagertWrapperImpl implements MultiTenanEntityManagertWrapper {

   private static final String JNDI_ENV = "java:comp/env/persistence/";

   @Resource
   SessionContext context;


   private EntityManager getMultiTenantEntityManager() {
      //Extract the name of the current user.
      Principal p = context.getCallerPrincipal();

      //Lookup the tenant name for the current user
      //This is application specific
      Users u = Users.getUser(p.getName());

      //Produces either TENANT1 or TENANT2
      String tenantName = u.getSite().toString();

      String jndiName = new StringBuffer(JNDI_ENV).append(tenantName).toString();
      //Lookup the entity manager
      EntityManager manager = (EntityManager) context.lookup(jndiName);

      if (manager == null) {
         throw new RuntimeException("Tenant unknown");
      }
      return manager;
   }


   //The delegates
   @Override
   public void persist(Object entity) {
      getMultiTenantEntityManager().persist(entity);
   }


   @Override
   public <T> T merge(T entity) {
      return getMultiTenantEntityManager().merge(entity);
   }


   @Override
   public void remove(Object entity) {
      getMultiTenantEntityManager().remove(entity);
   }

        ...
}

Now let us see how to put the entity manager references in JNDI. In order to avoid a lot of annotations (one per tenant) and therefore to be able to handle a huge number of tenans, I propose to use the ejb-jar.xml file to configure the EJB intead of the PersistenceContext annotation. The MultiTenantEntityWrapperEJB is configured as a stateless EJB. Ther persistence contexts are simply exposed to JNDI with the following pattern: java:comp/env/persistence/TENANTX. For more information please look at the EJB 3.1 specification chapter 16.11.1.

<persistence-unit-name>Tenant1</persistence-unit-name> is the name of the PU as defined in the persistence.xml file. <persistence-context-ref-name>persistence/TENANT1</persistence-context-ref-name>defines the name of the entity manager that is exposed via JNDI.

<?xml version="1.0" encoding="UTF-8"?>
<ejb-jar xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xmlns:ejb="http://java.sun.com/xml/ns/javaee/ejb-jar_3_0.xsd" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/ejb-jar_3_1.xsd" version="3.1">


   <enterprise-beans>
      <session>
         <ejb-name>MultiTenantEntityWrapper</ejb-name>
         <ejb-class>ejb.MultiTenantWrapperImpl</ejb-class>
         <session-type>Stateless</session-type>

         <!-- Persistece contexts -->
         <persistence-context-ref>
            <description>Tenant 1</description>
            <persistence-context-ref-name>persistence/TENANT1</persistence-context-ref-name>
            <persistence-unit-name>Tenant1</persistence-unit-name>
            <persistence-context-type>Transaction</persistence-context-type>
         </persistence-context-ref>

         <persistence-context-ref>
            <description>Tenant 2</description>
            <persistence-context-ref-name>persistence/TENANT2</persistence-context-ref-name>
            <persistence-unit-name>Tenant2</persistence-unit-name>
            <persistence-context-type>Transaction</persistence-context-type>
         </persistence-context-ref>

      </session>
   </enterprise-beans>

</ejb-jar>

Thread-safety and Transactionality

As this is compliant with both the EJB 3.1 and JPA 2.0 specification, thread-safety and transactionnaly are guaranteed by the container. For more details please look at the EJB 3.1 specification at chapters 16.10, 16.11 and the JPA 2.0 specification at chapter 7.6. Of course, the wrapper has to be an EJB in order to have access to the current JNDI context without having to create it. Furthermore, because the EntityManageris not per se thread-safe (JPA 2.0, chapter 7.2), the serialization of the invokations that is provided by the container for EJBs is essential the thread-safety aspect (EJB 3.1, chapter 4.10.13).

Conclusion

In this post, I showed how to leverage EJB 3.1 and JPA 2.0 standard features to provide multi-tenancy. The presented approach is thead-safe, it preserves transactionaly and does not induce a significant overhead.
